Rideau Canal Waterway - Building a Loon Nest


		Building a Loon Nest

Your location: Rideau Region > Rideau Residents > Building a Loon Nest

Building an Artificial Loon Nesting Platform

Loon on a natural nest

Loons are the bird most synonymous with the beauty of nature. Their sleek appearance and haunting call defines the Canadian wilderness. While loon populations in Canada are doing quite well, they sometimes have a problem nesting in areas with fluctuating water levels. Since in several areas, this fluctuation of water level is man made, it is up to us to resolve the problem for the loon. A simple resolution, that anyone can do, it to build a loon nest.

An artificial nest has other advantages as well. If properly located, it reduces the chances of animal predation on the eggs (ie. eating the eggs). It often provides us with a better view of a nesting loon, a wonderful sight. And, in my area at least, when the loon isn't using the nest, it becomes a sun deck for turtles.

Loon on an artificial nest

Although loons don't necessarily mate for life, once a nesting pair finds your nest, they will come back year after year to make use of it. With proper maintenance, the loon nest will last for several years. The picture on the right shows a loon nesting in the spring of 1997 on a nest that I built. She successfully hatched two chicks.

The cedar log design is based on my own experience. I have also added a novel idea to make a nest out of PVC piping, which follows the description of the cedar log construction. In both cases the aim is to build a floating platform, about 5 to 6 feet (1.5 to 1.8 metres) square.

Building A Cedar Log Nest

Materials needed:

Five (5), six-foot lengths of five to eight inch diameter dry logs, preferably cedar.
Vinyl coated fencing, two (2) - four foot by 6 to 8 foot lengths
Six (6) lag bolts of sufficient length to penetrate two logs (8 - 10 inch - zinc coated or stainless steel).
A dozen 1 inch (or so) diameter washers that will fit the lag bolts (zinc coated or stainless steel)
heavy duty hammer staples (to fasten the fencing to the nest)
An anchor (a cement block works great)
Anchor line (chain, aircraft cable or UV resistant rope).
Nesting material (straw, long grass, bulrushes)

Katie supervising building of the artificial loon nest

As can be seen from the pictures at the top and bottom of this page, the nest floats low in the water, allowing the loon to easily climb on and off it (the female regularly leaves the nest to feed). The picture to the left shows the completed framework for the nest. Note that I added a couple of shorter logs on the bottom, in the center. These are optional .. I just had them lying around.

To build the nest:

Start close to shore, you don't want to have to lug this thing too far on land.
Lay the two biggest logs on the ground, a distance apart so that the other three logs, which will form the surface of the nest will overlap by a few inches.
Use an axe (or saw) to notch the logs a bit where the upper and lower logs will meet (this makes for a more solid fit).
Lay the other three logs on top of the lower two, equally spaced.
Drill holes for the lag bolts where the upper and lower logs meet (if you don't have a long enough bit, drill one log at a time). The hole should be a tad (smidgen) bigger than the diameter of the lag bolt.
Put the lag bolts through the holes, with washers at both ends, and tighten them down. Your frame is now in place.
Take your two pieces of vinyl coated fencing, lay them on top of the frame, making sure they wrap around the frame a bit (so that the fencing will be in the water, making it easier for the loon to climb on and off the nest)
Use the hammer staples to fasten the fencing in place.
Now, attach one end of the anchor line, and put your nest in the water.
It should float about 1 - 3 inches above the water. If it doesn't, place empty 1 gal plastic containers (i.e. juice jugs, detergent jugs, or other UV resistant plastic - do not use windshield washer jugs as these will quickly fall apart) under the nest, fastened to the fencing to help in flotation.
Cover the top of the nest with an inch or two of nesting material. Use lightweight string to tie this down so it doesn't blow away. The loon will mound this material up for her nest.
Tow the nest out to a suitable spot (see below), attach the anchor(s), and wait for the loon.

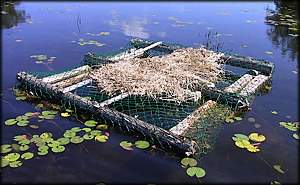

Loon nest just after the chicks have hatched and the loon has left (photo taken June, 2003)

There are several guidelines for nest placement:

It should be 30-60 feet / 9-18 metres off shore.
The area should be sheltered from wave action (a small bay is often ideal)
It is advantageous if the nest can experience some slight breezes (helps keep bugs off the nesting loon).
It should be out of the way of human disturbance as much as possible.
It should be in about 4 to 6 feet (1.2 - 1.8 m) of water in or near a natural feeding spot for loons.

Don't get discouraged if the loon doesn't nest in the first year. When I first put the float out I saw the female loon climb up on it a few times, but she never took to nesting on it. As far as I can tell that year, they either never nested, or never had a successful hatch of chicks (I never found a nest and they didn't have chicks that year). The nest was new and I had put branches (pine & spruce) on it, which I think might have been part of the problem with the loon not taking to it.

In the second year, I covered the nest with better material (long grasses and bulrushes collected from local wetlands). Again she climbed up on it a few times and then one morning the material was arranged in a mound and that afternoon I saw her sitting on the nest.

Long Term Maintenance

Since the nest is built with wood, it starts to get waterlogged after a few years. To preserve the life of the nest, I've done a couple of things.

I now pull the nest out of the water each year. I just skid it up onto shore along a couple of logs (the nest is quite heavy) to allow it to dry out a bit. In the spring, I place the nesting material (straw) on the nest while it is out of water (makes this job quite easy) and tie the nesting material down with string.
I check to make sure the anchor rope is still in good shape (it has to be replaced every few years). Then I put the nest back into the water and tow it out to its proper location.
I've added a couple of pieces to styrofoam under the centre portion of the nest to aid in flotation. This is just to prevent the possibility of the nesting material or eggs getting wet. The styrofoam packing from a large object (i.e. TV, computer, etc.) makes for good flotation. Since the nest is pulled out every year for inspection and maintenance, the styrofoam can be replaced before it degrades in the water.
I've added a couple of hardwood bracing slats (old hardwood floor pieces) under the fencing on the deck of the nest, to prevent it from sagging.

Building A PVC Nest

This section is based on a concept pioneered by Jeff Lange (Michigan Loon Preservation Association) as adapted and modified by Marc Grushcow. My thanks to Marc for permission to use his photos. This plan will make a 5' x 5' nest although alternate dimensions (5' x 4', 6' x 5', etc.) are acceptable.

Materials:

25 feet - 4 inch PVC piping (white sewer pipe works well).
4 - 4 inch PVC 90 degree elbows
2 - 4 inch PVC T-junctions
1 can PVC adhesive
3 - 6 foot long x 4 inch wide hardwood slats
12 feet of 4-foot wide plastic outdoor fencing (2 inch or less mesh)
1 roll 18 gauge galvanized wire or plastic coated copper wire.
6 UV tolerant plastic jugs (not windshield washer fluid jugs. Suitable jugs are juice jugs, laundry detergent jugs or bleach bottles (well rinsed)
1 small olive green acrylic latex paint (optional)
2 concrete blocks
40 feet of nylon (UV tolerant) rope or wire aircraft cable (better but much more expensive). If using aircraft cable, then four "U" type cable clamps will also be needed.

Construction

Saw the PVC pipe into three 5-foot lengths and four 2.5-foot lengths
Glue two short pieces into either end of the T joint. Remember to put glue both on the outside of the end of the pipe to be inserted into the joint and on the inside of the joint. Don't be stingy with the glue. You must have an unbroken ring at least an inch wide around both the pipe and the fitting in order to get a complete seal. If you don't, you risk a leaky nest. Repeat this procedure for the other T-joint.
Add a 90-degree elbow to each end. Once you've fitted each joint, lay the pipe on the floor and make sure that the T-junction and the 90-degree elbow are flat on the floor. You now have assembled two ends. Each has a 90-degree elbow, short straight pipe, T fitting, short straight pipe, and 90 degree elbow.
Take one of the ends and the three remaining 5-foot straight pipes and glue the pipe into the joints. At this point, if you stand it up, you have something that looks like |_|_|
Here's the tricky part. You need two people for this. Take the remaining end and put glue on the inside of the two 90-degree elbows and the T-junction and then the outside of the three straight pipes and fit the whole thing together. This is tricky because you have to get this all glued and assembled before the glue sets. Fit the elbows and T-junction onto the three pipes. Marc noted that he bounced the nest on its end to help make sure that the pipes were fully seated.
At this point, an option is to paint the PVC piping if you don't want it to be white. If painted, leave at least a full day (preferably a few days) for the paint to fully harden before doing more work on the nest.
Cut the slats to a length such they just fit across the top of the frame. Sand smooth the ends of the slats. Lay the slats evenly across the top of the PVC frame and wire to the frame.
Cut two sections of fencing, about six feet long each. Position fencing loosely in position on top of the nest, so that the centre portion overlaps, and fasten down one end of the fencing to one side of the frame with wire. Then stretch the other end as tightly as possible and fasten with wire to the other side of frame. Don't worry about how tight you get the fencing as the slat boards will prevent it from sagging.
Fasten the 6 jugs under each of the slats using wire.
Check the nest to make sure there are no wire ends sticking up.

Put the nest into the water and test the floatation with a concrete block. It should float 2 to 3 inches above the water.
Attach the cement blocks and anchor lines to two diagonally opposite ends of the platform.
Place nesting material on top of the nest (straw and/or bulrushes). Tie this down with string so that it won't blow away.
Tow the nest to its final location which should be a sheltered area, about 30 to 60 feet (9 to 18 m) off shore, in 4 to 6 feet (1.2 to 1.8 m) of water (see the guidelines for placement in the first section).
Place anchors so that there is some slack in the rope or cable, enough to compensate for fluctuating water levels, while keeping the nest steady.

Nest Diary

Of note in this section is that loons do not necessarily mate for life. Loons are very territorial and will compete for the best nesting sites, which includes unmated loons trying to partner with existing mated males or females (chasing away or even killing an existing mate). So, although I presume this is the same nesting pair, fundamentally a loon looks like a loon, they could be different.

In 1996, the brand new nest was official launched on April 16. The female loon arrived back on April 21 but never nested on the nest (never nested at all as far as I could tell).
In 1997, the female loon arrived April 21 (the male had arrived a week earlier). She started nesting on May 26 and she hatched two chicks on June 23.
In 1998, the female loon arrived back on April 20 (male arrived on April 3), she started nesting on May 29 and hatched 2 chicks on June 26.
In 1999, the female arrived back on April 20 (the male arrived on April 7) and she started nesting on May 24 and hatched 2 chicks on June 20.
In 2000, the female arrived back on April 18 (the male arrived on April 1) and she started nesting on May 22 and hatched 2 chicks on June 18.
In 2001, it appears that both male and female arrived back on or about April 16 (ice breakup on lake was 2 weeks later than last year - perhaps delaying the male) and the started nesting on May 19. Two chicks were hatched on June 15.
In 2002, the male arrived back on April 9 - not sure exactly when the female arrived back. She started nesting on May 20. Two chicks were hatched on June 16.
In 2003, the male arrived back on April 16 and the female arrived back about April 29. She started nesting on May 25. Two chicks were hatched on June 22.
In 2004, the male arrived back on April 14 and the female arrived back about April 16. She started nesting on May 22. One chick was hatched on June 20.
In 2005, the male arrived back on April 14 and the female arrived back about April 20. She started nesting on May 29. Two eggs were laid but neither chick survived the first day (I never saw the chicks although it appears that the eggs hatched).
In 2006, the male arrived back on April 6 and the female arrived back about April 12. She started nesting on May 26. Two eggs were laid but nesting material got removed (blown away?) from nest - lost eggs.
In 2007, the male arrived back on April 14 and the female arrived back about April 18. She started nesting on May 30. Two chicks hatched. Lost 1 chick on August long weekend. Second chick survived to fly south in late November.

and here is the reward for the work of building and maintaining a loon nest. These pictures were taken on June 21, 1999, one day after the chicks hatched.

Loon parents feeding chicks

top: loon parents feeding chicks, bottom left: female with loon chicks, bottom right: chicks riding on female's back

In 2004, I created a new brochure for Friends of the Rideau called "Be Rideau Loon Aware" about loon chicks and responsible watercraft use. The on-line version of the brochure can be found on the Friends of the Rideau website on the Be Rideau Loon Aware page (please note that this link will take you off this website). The brochure itself can be downloaded from the Documents section on this website.
